Diamond Wire

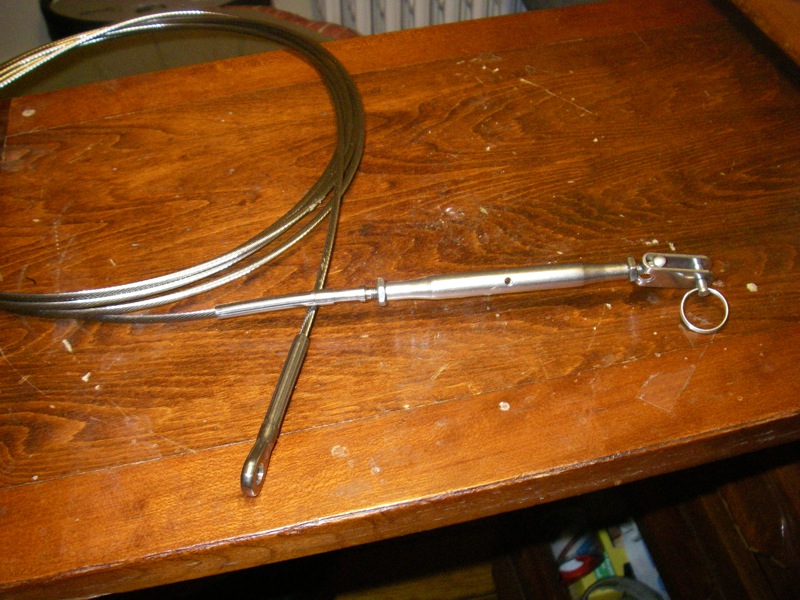

These instructions are for a professional rigger. He or she will have to determine the actual
parts from the picture below; some dimensions are not intended to be crtical, rather they are just here to help identify the correct components.
Attachment: Note that the diamonds attach to the same through-bolt as the trapezes, and they have to be attached with Y-shaped tangs. It is essential that the load on the clevice pin is perpendicular to the pin, and the Y-tangs are designed to ensure this.
Warning: I cannot guarantee these specifications are exactly right. I have done the best I can to measure a brand new OEM Laser 2 diamond wire from Vanguard Sailboats (now LaserPerformance). If you use this information for your own boat, it is your responsibility to determine that what you or your rigger builds is sufficient for the task.
The key dimensions are:
- 168 1/2" BP-BP when adjusted for minimum length
- 1/8" diameter stranded stainless steal cable
- swaged turnbuckle w/ 3 1/2" long barrel center hole (bottom)
- 1/4" ID diameter eye swage (top)
Other helpful dimensions are:
- Turnbuckle (in order from top to bottom):
- 1 3/4" long reverse thread swage bolt
- reverse threa lock nut
- barrel is 3/8" diameter and must have a center hole for inserting a pin to turn it
- 1 7/8" standard thread with T-head to fit into shackle
- standrad thread lock nut
- shackle that fits T-head at top, and has 3/16" clevis pin at bottom
- Eye Swage
- 2 5/16" total length
- this part has a '4' stamped on it, if that helps
